Hot Sale Outdoor Unitube Armoured Single Mode Fiber Optic Cable 2 6 12 24 Core Gyfxy
We are fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get FREE SAMPLES.

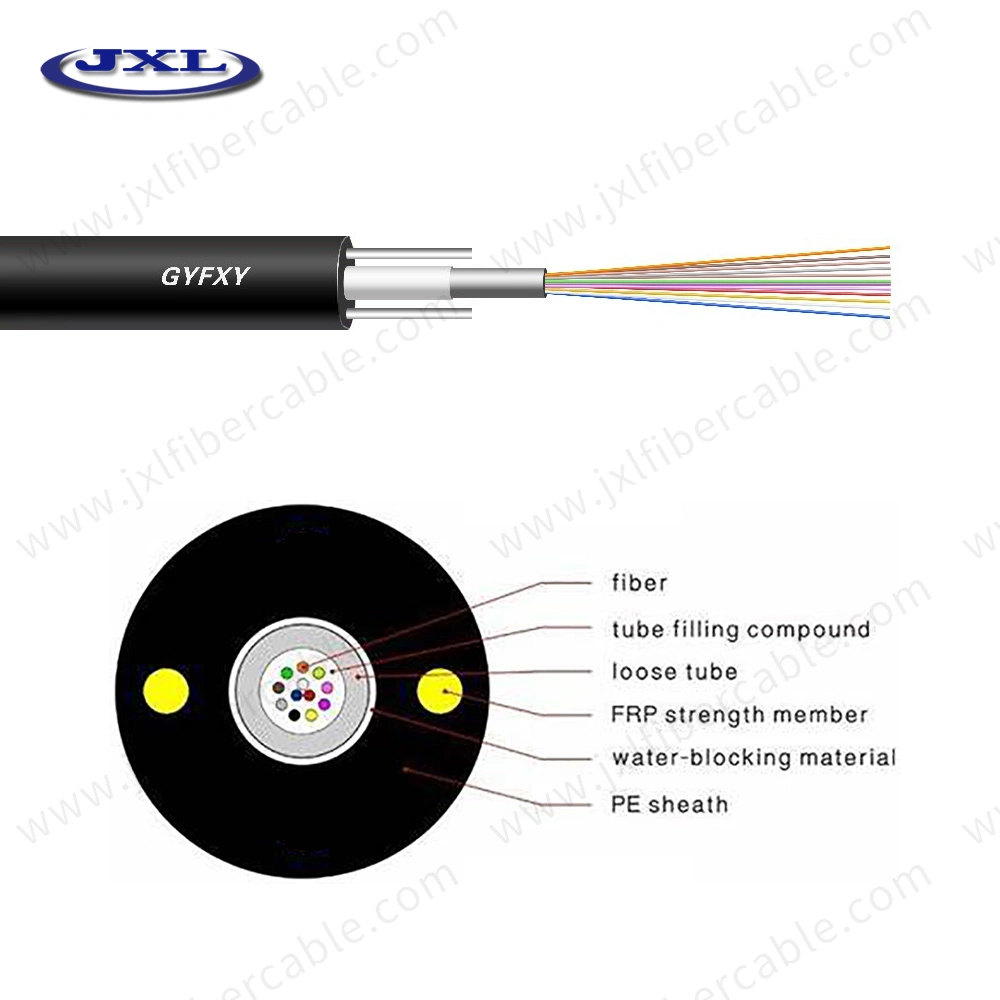

Unitube Non-metallic Non-armored Cable(GYFXY)
Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Two parallel FRPs ensure tensile strength
· PE sheath protects cable from ultraviolet radiation
· Small diameter, light weight and friendly installation
· Long delivery length
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20ºC) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
| GYFXY -2~12 | 2~12 | 10.2 | 100 | 400/1000 | 300/1000 | 10D/20D |
Guangdong Juxianlan Communication Co., Ltd. Was established in 2014 and specializing in manufacturing fiber optic products and providing fiber optic solutions and engineering services in Guangdong, China.
As a professional cable manufacturer, we are committed to providing customers around the world with comprehensive products, the latest technology, and professional services to help customers to build a high-quality network platform. Combining with the actual needs of customers, we are providing individualized and comprehensive solutions to meet customers′ demands.
We offer the whole range of equipment for fiber optic, Telecom (FTTH, 4G/5G Mobile Stations, etc. ), Ethernet, and CATV network. Each unit of our products will go through 3 QC procedures: Material checking before production, stability and performance testing after production and packing checking before delivery.
Currently, most of our products have been exported to Europe, Russia, and South America. Welcome numerous agents, integrated dealers, and equipment producersall over the world to cooperate with us, to the greatest extent possible to meet your needs.
