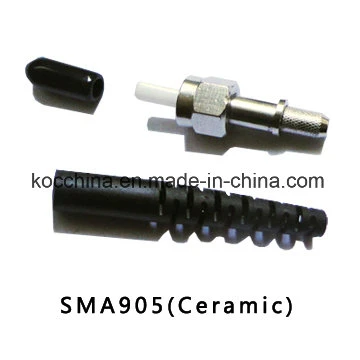

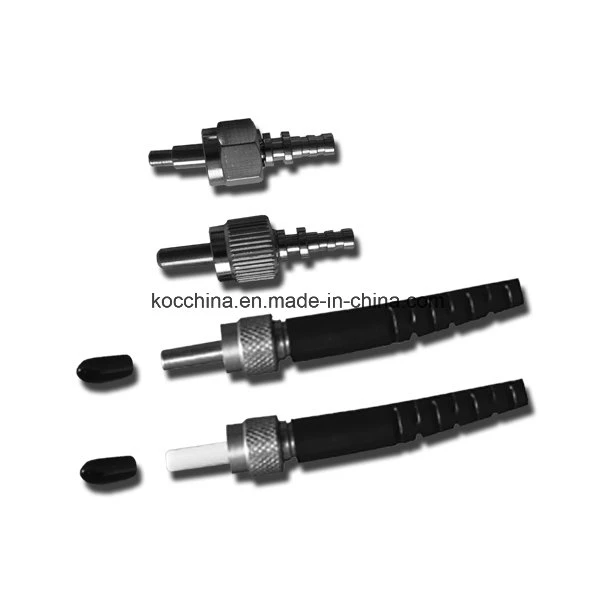

SMA 905/906 Fiber Optic Connector for 2.0/3.0mm Cable

BRIEF INTRODUCTIONThe SMA connector is more and more used in the optical fiber communication system, such as metro, data processing network, medical equipment, aerospace equipment. There are two kinds of materials for the SMA connector ferrule, ceramic and metal. For the metal ferrule, the type of SMA905 and the SMA906 are widel

Featured Products

BRIEF INTRODUCTION
The SMA connector is more and more used in the optical fiber communication system, such as metro, data processing network, medical equipment, aerospace equipment. There are two kinds of materials for the SMA connector ferrule, ceramic and metal. For the metal ferrule, the type of SMA905 and the SMA906 are widely used, and the other types can be customized. The ARK can supply metal ferrule and ceramic ferrule. The connector can be supplied in one-piece connector.
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS.   If you have other special requirements, the ARK will be specifically for your customization to meet your needs.
 SPECIFICATIONS
ITEMParameter
Multi-mode
Ferrule materialMetal OR Ceramic
Insertion LossMetal: typical≤0.60dB,Max≤1.00dBCeramic: typical≤0.20dB,Max≤0.30dB
Ferrule OD.∮3.0mm, customized( metal type)
Ferrule materialMetal OR Ceramic
Ferrule Specification127+3/-0μm, Concentricity: ≤3.0μm
Operating Temperature-20ºC to +70ºC
Storage Temperature-40ºC to +85ºC


SMA 905/906 Fiber Optic Connector for 2.0/3.0mm Cable
