Shenzhen DYS ,over 11 years manufacturer on fiber optic field ,offering one-stop solutions porducts and service ,not just items showed in this listing ,please send inquiry with your demands and requirements.
Outdoor ADSS GYTS GYTC8S Optical Armored Cable FRP FTTH Drop Cable Fiber Optic Communication Cable
We are 11 years fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get free samples.
Description

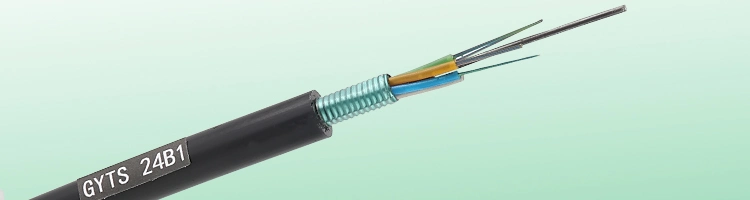

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.
Features
Up to 144 fiber cores
The loose tube stranding technology make the fibers have good secondary excess length
Metal strength member provides excellent strain performanc
Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features
The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress
Application
Stallation in aerial or duct environment for long haul communication
LAN, especially suitable for the situation of high requirements to lateral pressure resistance
| Cable type | OD(mm) | NominalWeight(kg/km) | tensile strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GYTS-2~60Xn | 10.5±0.5 | 88.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| GYTS-62~72Xn | 11.5±0.5 | 102.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| GYTS-74~96Xn | 13.0±0.5 | 130.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| GYTS-98~144Xn | 15.5±0.5 | 156.0 | 1500 | 600 | 1000 | 300 | 20D | 15D |
| Storage/Working temperature(ºC) | -40~+70 | |||||||
Description
ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.
Features
PE or AT sheath ensures safety of cable in high voltage environment.
All-dielectric structure and light weight provide easy installation and good electromagnetic resistance.
Reliable performance of moistureproof and waterproof.
Application
Railways, power and telecommunication pole routes.
Suitable for installation on poles and on the power distribution network.
Aerial self-supporting applications at short, medium and long span distancesIdeal for transmission lines with high electrical field strength.
Can be used in areas suffered from frequent lightningldeal for transmission lines with high electrical field strength.
Other outdoor Cable
Company Competitive Advantage
Shenzhen DYS Fiber Optic Technology,The leading company in developing and manufacturing advanced fiber optic products,mainly offer below:
Fiber optic cable
CPRI outdoor cable assemblies
MPO/MTP series products
Standard fiber optic patch cable&pigtail
Fiber optic PLC Splitter
Fiber optic Fast Connector
FTTH box
DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.
Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. When our company be established?
Answer: We started from year 2008.
3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5. What certificate we have?
Answer: ISO 9001: 2008, RoSH, UL, CPR, CE,High and New Tech Enterprise Certficate.
Trade terms: EXW,FOB, CFR,CIF,FCA and so on
Payment terms: T/T, L/C, Western Union, Paypal(for sample order)
Sample policy: Samples will be offered to you free of charge for some items
DYS is one-stop manufacturer ,offering OEM/ODM service ,meeting custom requirements,competitive in quality,price and service ,welcome for inquiry,thanks in advance.
