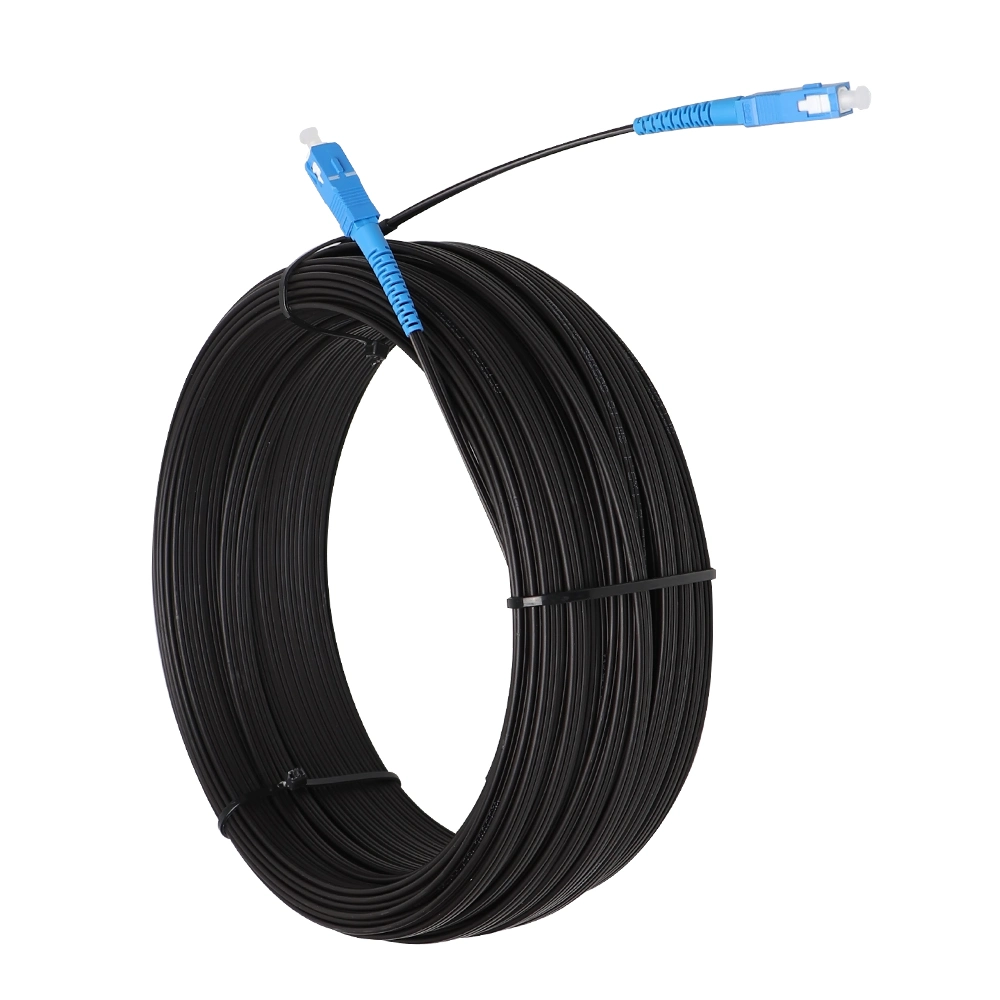

Optical Fiber Patch Cord 1f Sc/Upc Drop Cable Fiber Optic Patch Cord
(1) FTTH drop cable patch cord is specially for FTTH application, it can be used indoor or outdoor to access building.
(2) FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.
(3) FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12.
(4) FTTH drop cable patch cord can be made with LC, SC, FC, ST, LC/APC, SC/APC, FC/APC and other types of connectors.
Features:
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
Application:
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Parameter
| FTTH drop cable fiber optic patch cord Performance Parameter | |||
| Name | FTTH drop cable fiber optic patch cord | ||
| Ferrule type | zirconia ceramics ferrule | ||
| IL | ≤0.3dB | RL | ≥55dB |
| Fiber core | 1,2,4 to 12 | Durability | ≥1000 times |
| Jacket | 3.1*2.0 or 5.0*2.0mm PVC or LSZH | Wavelength | 1310 1550nm |
| Length | 1~1000 meter | Working temperature | -40ºC~+80ºC |
