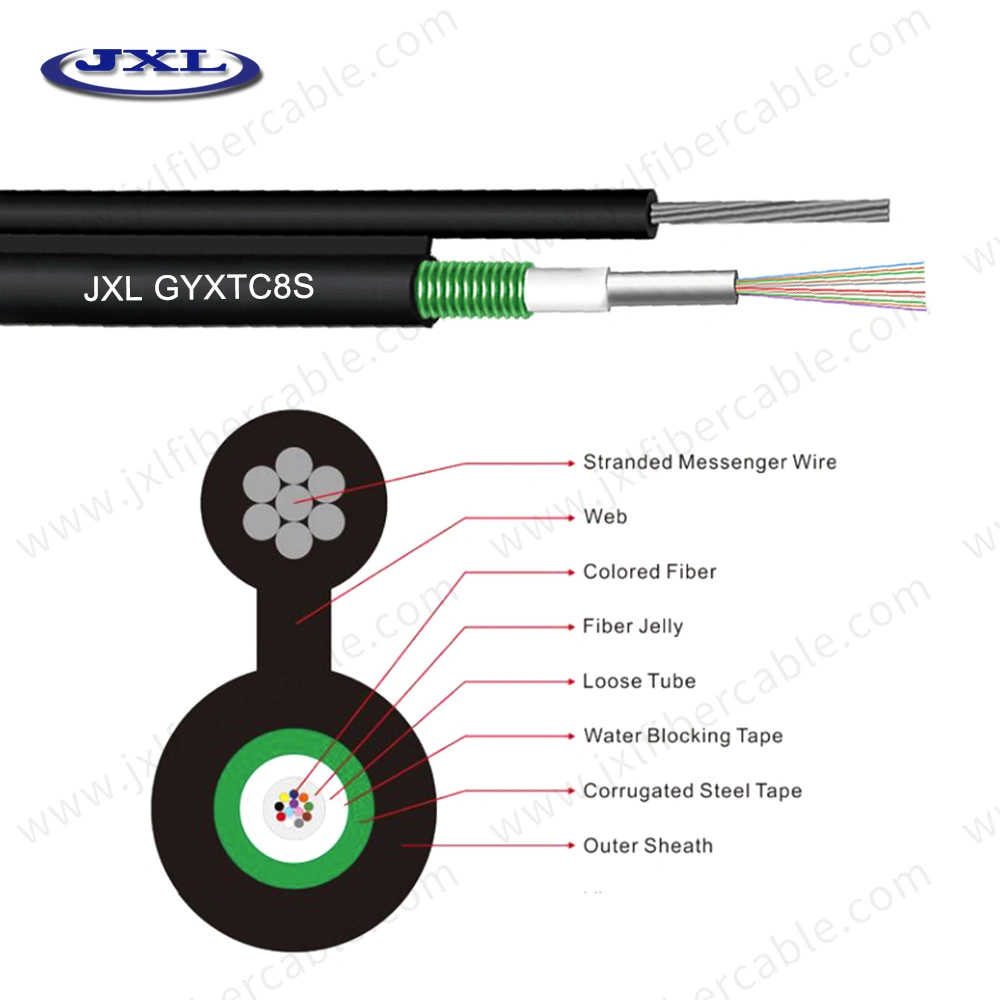

Multi-Core Outdoor Cable De Fibra GYTC Optic Fiber Cable Communication Fiber Optic Cable
Characteristics · High tensile strength of stranded wires meet the requirement of self-supporting and reduce the
We are fiber optic cable manufacturer.
Welcome to go to the factory tour!
Send message to us can get FREE SAMPLES.
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· PSP enhancing moisture-proof
· Small diameter, light weight and friendly installation
· Long delivery length and low price.Optical Characteristics
|@850nm|| || ||≤3.0 dB/km||≤3.0 dB/km|
|@1300nm|| || ||≤1.0 dB/km||≤1.0 dB/km|
|@1310nm||≤0.36 dB/km||≤0.40 dB/km|| || |
|@1550nm||≤0.22 dB/km||≤0.23dB/km|| || |
|Bandwidth (Class A)||@850nm|| || ||≥500 MHz·km||≥200 MHz·km|
|@1300nm|| || ||≥1000 MHz·km||≥600 MHz·km|
|Numerical Aperture|| || ||0.200±0.015NA||0.275±0.015NA|
|Cable Cut-off Wavelength λcc||≤1260nm||≤1480nm|| || |
|Cable Type||Fiber Count||Cable Diameter|
|Cable Weight kg/km||Supporting Wire Spec||Connection Diameter||Tensile Strength|
Long/Short Term N
|G.652.D single mode fiber|
|Attenuation vs. Wavelength|
Max. α difference @1310nm
|Zero dispersion wavelength|| ||nm||1300nm~1324nm|
|Zero dispersion slope|| ||ps/(nm2.km)||≤0.092|
|Typical Value|| ||ps/(nm2.km)||0.086|
|Polarization mode dispersion coefficient PMD|| || || |
|Single fiber maximum value|| ||ps/||≤0.20|
|Fiber link value(M=20,Q=0.01%)|| ||ps/||≤0.10|
|Typical value|| ||ps/||0.04|
|Cable cut-off wavelength λcc|| ||nm||≤1260|
|Mode field diameter MFD||1310nm||μm||9.2±0.4|
|Cladding diameter|| ||μm||124.5±1.0|
|Cladding non-circularity|| ||%||≤1.0|
|Coating diameter|| ||μm||242±7|
|Coating-cladding concentricity error|| ||μm||≤12.0|
|Curl (radius)|| ||M||≥4|
|Delivery length|| ||km/reel||2.1~50.4|
|Temperature Dependence Induced Attenuation||-60ºC ~+85ºC||dB/km||≤0.05|
|Temperature-Humidity Cycling Induced Attenuation||-10°C to +85°C, 98% RH||dB/km||≤0.05|
|Water Immersion Dependence Induced Attenuation||23°C,for 30 days||dB/km||≤0.05|
|Damp Heat Dependence Induced Attenuation||85°C and 85% RH,for 30 days||dB/km||≤0.05|
|Dry Heat Aging||85ºC||dB/km||≤0.05|
|Proof test|| ||GPa||≥0.69(100kpsi)|
|Macro-bend Induced Attenuation|| || || |
|100 turns Ф60mm||1625nm||dB||≤0.05|
|Coating Strip Force||Typical average force||N||1.5|
| ||Peak force||N||1.0~8.9|
|Dynamic fatigue parameter|| || ||≥20|
Guangdong Juxianlan Communication Co., Ltd. Was established in 2014 and specializing in manufacturing fiber optic products and providing fiber optic solutions and engineering services in Guangdong, China.
As a professional cable manufacturer, we are committed to providing customers around the world with comprehensive products, the latest technology, and professional services to help customers to build a high-quality network platform. Combining with the actual needs of customers, we are providing individualized and comprehensive solutions to meet customers′ demands.
We offer the whole range of equipment for fiber optic, Telecom (FTTH, 4G/5G Mobile Stations, etc. ), Ethernet, and CATV network. Each unit of our products will go through 3 QC procedures: Material checking before production, stability and performance testing after production and packing checking before delivery.
Currently, most of our products have been exported to Europe, Russia, and South America. Welcome numerous agents, integrated dealers, and equipment producersall over the world to cooperate with us, to the greatest extent possible to meet your needs.
