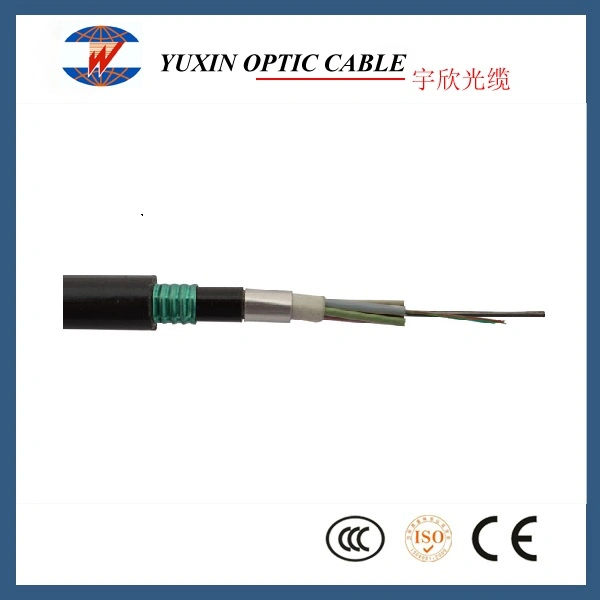

High Quality Stranded Loose Tube Armored 96 Core Cable Optical Fiber Cable GYTA53 Fiber Cable

iber optic cable GYTA53, 2~288 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.Detailed specificati

Featured Products

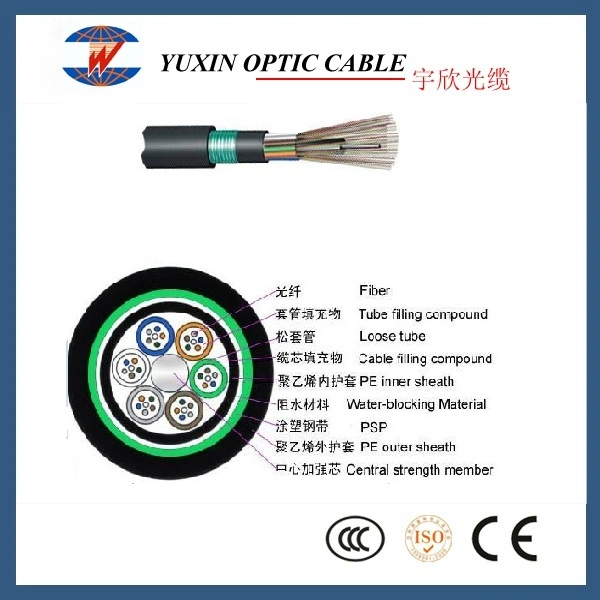

iber optic cable GYTA53, 2~288 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, copolymer coated aluminum tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. G652D SM fiber.

Detailed specification on your request.


Item Parameter
Fiber-G652DAttenuation Coefficient1310nm dB/km ≤0.4
  1550nm dB/km ≤0.3
Outer jacketMaterialMDPE
 ColorBlack
Min. bending radiusStatic10 times cable diameter
 Dynamic20 times cable diameter
Repeating bendingLoad:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performanceShort term1500N The addition attention≤0.1dB,fiber strain ≤0.15%
CrushShort term1000N/100mm The addition attention≤0.1dB
TorsionLoad:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.
ImpactImpact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break
