GYFTY-G Stranded Non Armored Optical Fiber Cable G652D PE sheath duct fiber optic cable
Description:
GYFTY Single Jacket None Metallic optical fiber cable are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.Loose Tube Single Jacket All Dielectric cables are lightweight with small diameter and designed for duct and aerial(lashed) installation.
Features
Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
All Dielectric structure.
UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, lashed/Aerial.
Structure and Technical Specifications GYFTY
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber | Max No. of | Allowable Tensile Load (N) | Allowable Crush Resistance | ||
Short Term | Long Term | Short Term | Long Term | |||||
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
>144 | Available upon customer request | |||||||

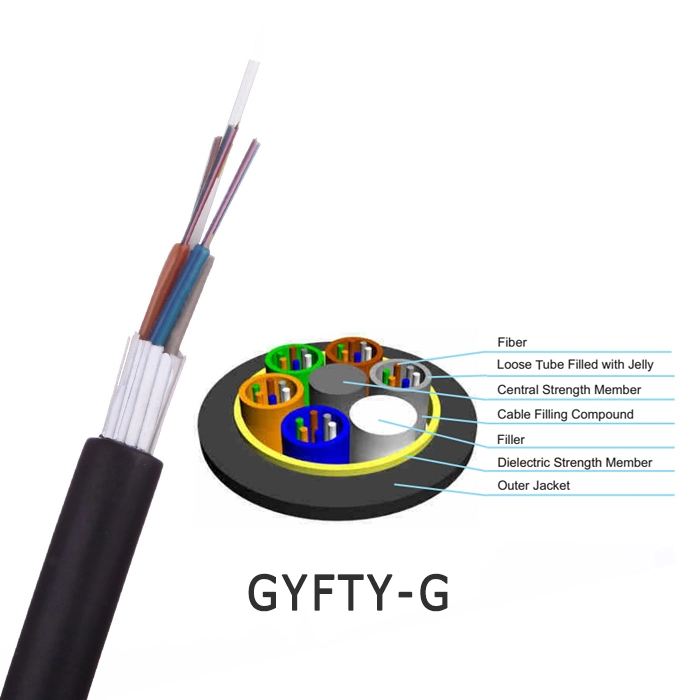

Structure and Technical Specifications GYFTY-G (Yarn)
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber | Max No. of | Allowable Tensile Load (N) | Allowable Crush Resistance | ||
Short Term | Long Term | Short Term | Long Term | |||||
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
>144 | Available upon customer request | |||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
