Shenzhen DYS ,over 10 years manufacturer on fiber optic field ,offering one-stop solutions porducts and service ,not just items showed in this listing ,please send inquiry with your demands and requirements

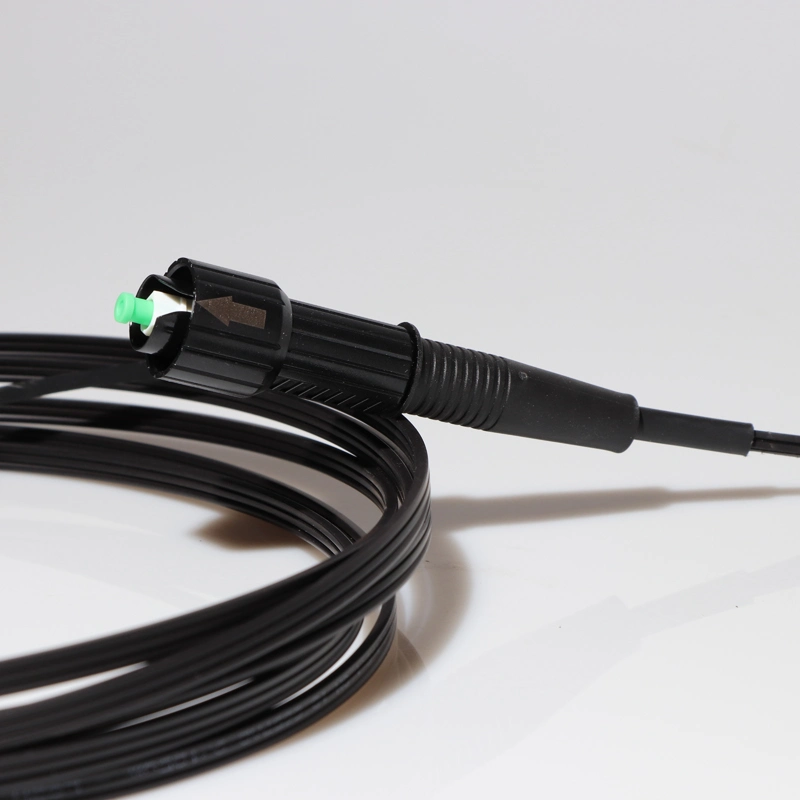

IP SC/APC fiber optic outdoor patch cord
Compatible with Corning Optitap
Description of H connector
- H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
- The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
- The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
Allows flexibility to use factory terminated assemblies
Provides superior weather resistance for FTTH and other outdoor applications
Ensures functionality in harsh weather environments
Can be used with industry standard cable designs
Easily installs without special tooling
Threaded style coupling
Provides bend protection for installation and long term use
Single fiber, SC-based connector
Bird proof and rodent resistant
IP68 water and dust protection
Low profile in-line receptacle available
No installation tools required
100 minimum mating cycles
In-line connection available
Operating temperature: -40° to 85°C
Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
33 lb. axial cable retention (150N)
≤ 0.15dB Typical Singlemode
≤ 0.23dB Typical APC
≤ 0.50dB Typical Multimode
Ultra (UPC) ≤ -55dB
Angle (APC) ≤ -65dB
< 0.2dB change, 100 mating cycles
<0.3dB change, -40 to +85°C
Shenzhen DYS Fiber Optic Technology,The leading company in developing and manufacturing advanced fiber optic products,mainly offer below:
CPRI outdoor cable assemblies
MPO/MTP series products
Standard fiber optic patch cable&pigtail
Fiber optic PLC Splitter
Fiber optic Fast Connector
DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.
Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
DYS is one-stop manufacturer ,offering OEM/ODM service ,meeting custom requirements,competitive in quality,price and service ,welcome for inquiry,thanks in advance.
